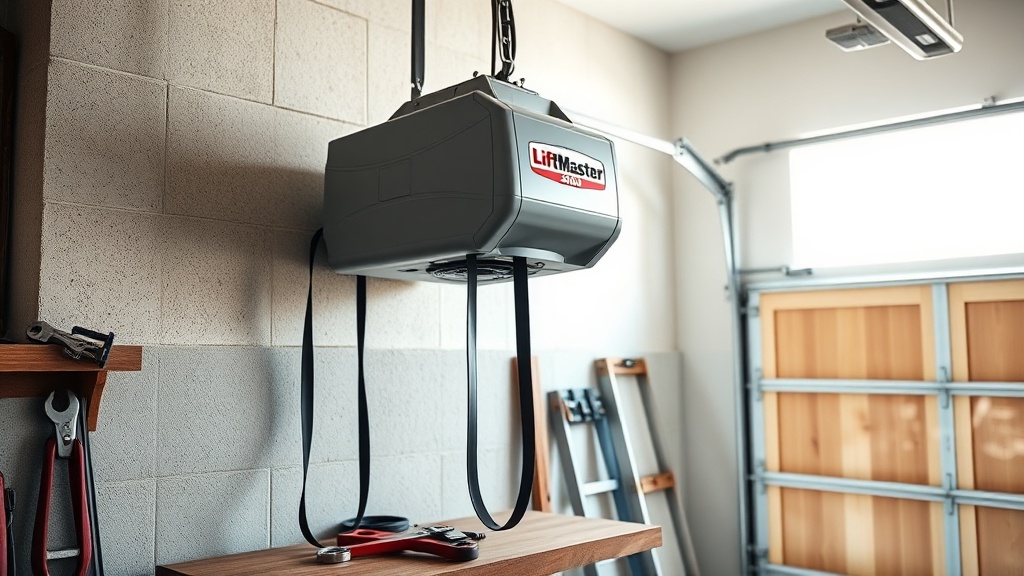

What Causes LiftMaster 8500 Belt Slippage and How Is It Diagnosed?
Belt slippage in a LiftMaster 8500 wall-mounted garage door opener typically manifests as a jerky or slow door movement, unusual grinding or squealing sounds, or the door stalling mid-travel. The root cause is often a loss of tension in the belt drive system, which can occur due to normal wear, improper installation, or a failing motor coupler. Diagnosing the issue begins with a visual inspection: look for frayed edges, glazed spots, or excessive slack in the belt. Next, manually cycle the door with the opener disengaged to feel for binding in the tracks. If the belt moves irregularly while the motor shaft spins freely, the drive coupling may be worn out—read our LiftMaster 8500 Drive Coupling Replacement: Step-by-Step Guide for detailed replacement instructions.

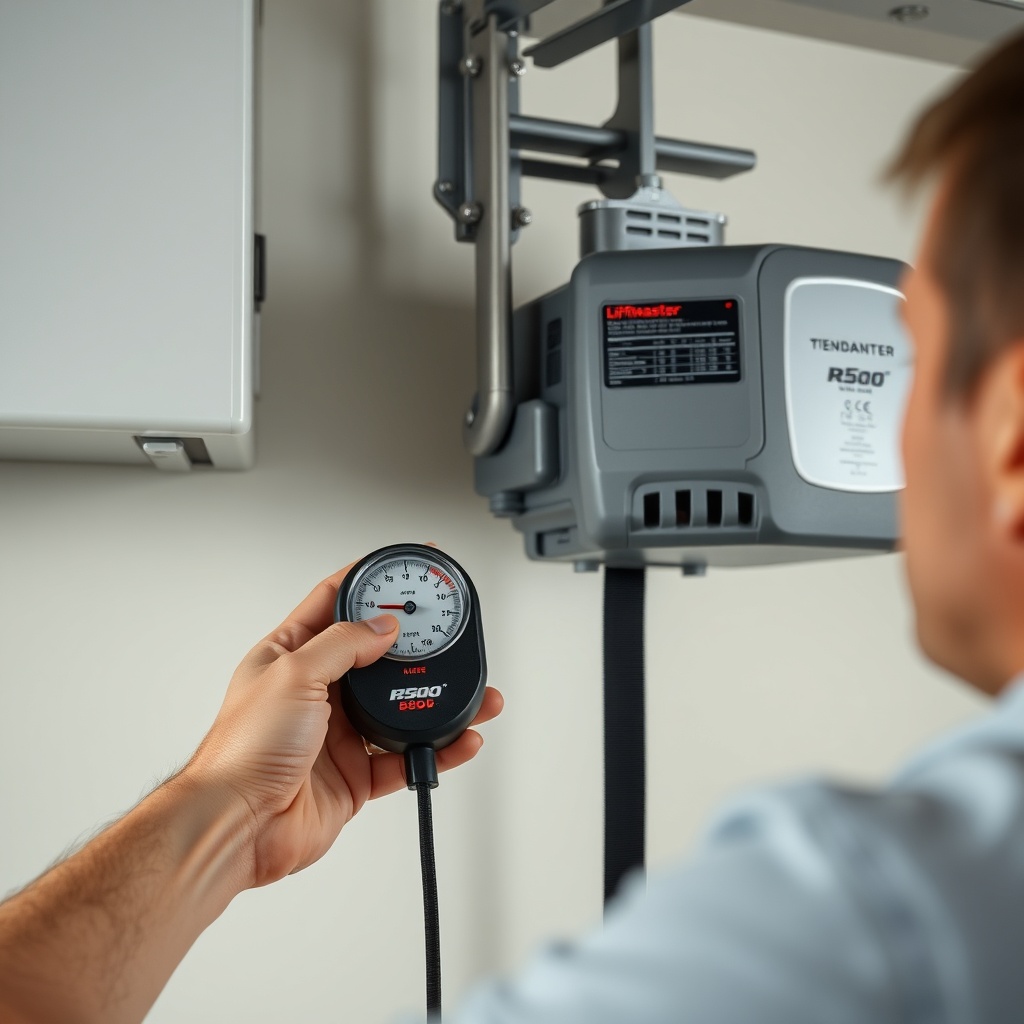

A more precise diagnostic step involves measuring belt tension using a tension gauge. The correct specification for the LiftMaster 8500 is 8–12 pounds of force when measured at the midpoint of the belt’s longest span. If the reading is below 8 lbs, the belt is too loose and must be tightened. If it exceeds 12 lbs, overtightening risks premature wear on the motor bearings. Most installations include a hex-key tensioning bolt located near the motor housing. Turn it clockwise to tighten, counterclockwise to loosen, and check tension after each full rotation. If slippage persists after adjustment, the belt itself may be damaged, or the LiftMaster 8500 Opener Motor Capacitor Testing: DIY Tutorial can verify whether capacitor issues are reducing motor torque.
How Do I Adjust the Belt on a LiftMaster 8500?
Belt adjustment is a straightforward procedure that requires a 5mm hex key and a 1/2-inch socket wrench. Start by disconnecting power to the opener and releasing the door from the trolley using the emergency release cord. Locate the tensioning screw on the back of the motor housing—it’s usually a bolt with a locking nut. Loosen the locking nut, then turn the tensioning screw clockwise to increase tension. A good rule of thumb is that the belt should have no more than 1/4 inch of deflection when pressed downward at its centre. Once achieved, retighten the locking nut and reconnect power. Test the door by running a full cycle—listen for any persistent squealing, which indicates overtightening. If the belt still slips, a deeper mechanical fault may exist, such as a worn drive gear. In that case, check our LiftMaster 8500 Opener Motor Brush Replacement Guide for brush wear indicators.
When Should I Replace the Belt vs. the Entire Drive System?
Deciding between belt replacement and a full drive system overhaul depends on the extent of wear and the age of the unit. A new belt for the LiftMaster 8500 costs between £25 and £40 for OEM parts, while the complete drive assembly (including belt, pulley, and drive gear) runs £75–£120. Labour for a professional installation adds £80–£150. The table below summarises when each approach is advisable.
| Symptom | Recommended Action | Cost Range (GBP) | Time Estimate |
|---|---|---|---|
| Belt frayed or glazed, but motor runs smoothly | Replace belt only | £25–£40 (DIY) / £105–£190 (pro) | 30–45 minutes (DIY) |
| Belt slipping + grinding noise from motor head | Inspect drive coupling and motor brushes | £15–£50 for coupling/brush kit | 1–2 hours (DIY) |
| Excessive vibration, uneven travel, multiple motor components worn | Replace entire drive assembly | £75–£120 (parts) + £80–£150 (labour) | 2–3 hours (pro) |
| Motor runs but door doesn’t move; internal gear stripped | Replace motor gearbox or whole opener | £200–£400 (new opener) | 3–4 hours (pro) |
If the unit is over 10 years old and experiencing motor issues, replacing the entire opener may be more cost-effective than piecemeal repairs. For motor-specific faults, the LiftMaster 8500 Opener Motor Replacement Cost: DIY vs Pro Guide offers a detailed breakdown of expenses.
What Are the Common Signs of a Worn Drive Coupling on a LiftMaster 8500?

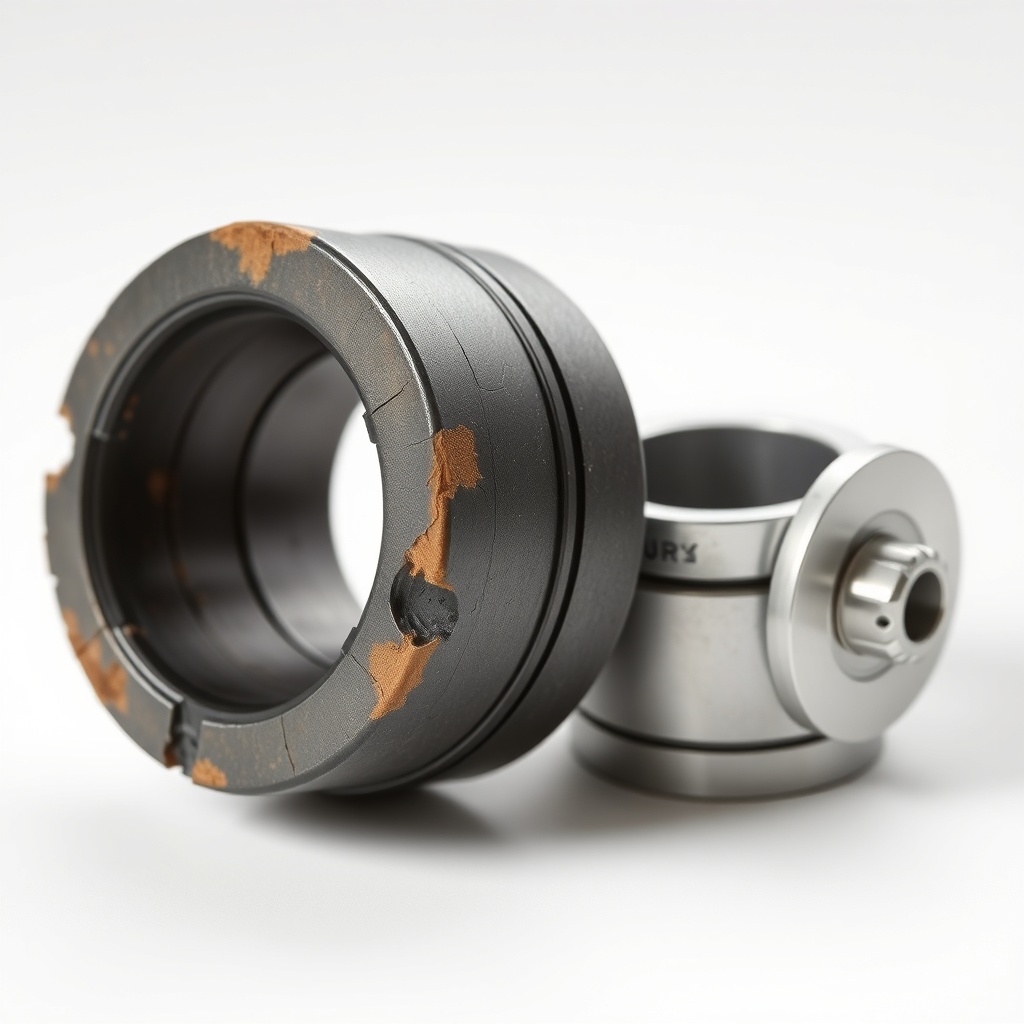

The drive coupling is a rubber or urethane component that connects the motor shaft to the belt drive gear. When it wears out, the motor may spin freely without moving the belt, or the door may move in a jerky, inconsistent manner. A classic symptom is a rubber-burning smell during operation, caused by the coupling slipping against metal surfaces. To inspect, remove the motor cover and look for cracks, missing chunks, or a loose fit on either shaft. If the coupling is compromised, replacement is essential—see our LiftMaster 8500 Drive Coupling Replacement: Step-by-Step Guide for a walkthrough. Ignoring a worn coupling can lead to motor shaft damage, which requires a more expensive motor replacement.
How Does Belt Slippage Affect the LiftMaster 8500’s WiFi and Remote Functions?
Belt slippage itself does not directly impact the opener’s WiFi or remote control circuitry, but it can cause the door to stop mid-travel or reverse unexpectedly, which may trigger error codes that disrupt smart home integration. For instance, if the door fails to close fully due to belt slip, the MyQ system may show “Obstruction Detected” or “Door Not Closed” alerts, preventing remote operation. Resolving the mechanical slip—by adjusting or replacing the belt—usually restores normal function. If Wi-Fi pairing issues persist after the belt fix, consult the LiftMaster 8500 WiFi Pairing Reset: Step-by-Step Troubleshooting Guide to reconnect the opener to your network. Similarly, if remote programming fails after a mechanical repair, the LiftMaster 8500 Remote Programming: Troubleshooting Common Issues page has you covered.
What Owners Say
Homeowners who have dealt with LiftMaster 8500 belt slippage frequently highlight the importance of early detection. Many report that a minor squeaking sound, if ignored for weeks, escalates into a total belt failure that leaves the door stuck halfway. Owners who replaced the belt themselves praise the clear instructions provided in the manual but caution that the tensioning bolt can be difficult to access without a ratcheting wrench. A common tip from the community is to lubricate the belt with a silicone-based spray every six months—this reduces friction and extends belt life. Several users also recommend checking the drive coupling during belt replacement, as a worn coupling is often the hidden cause of persistent slippage. Overall, the consensus is that proactive maintenance (tension checks, coupling inspection) saves money and downtime compared to reactive repairs.
Frequently Asked Questions
- Q: Why does my LiftMaster 8500 belt slip after a power outage?
A: Power outages can cause the opener to lose its travel limit settings, allowing the door to over-travel and the belt to slacken. Reprogram the limits using the “Learn” button and check tension. - Q: Can I use a generic belt instead of a LiftMaster OEM belt?
A: It is strongly discouraged. Generic belts often have different tooth pitch or width, leading to poor grip and accelerated wear. OEM belts are designed to match the polymer and fit of the 8500 series. - Q: How often should I replace the belt on a LiftMaster 8500?
A: Under normal use (10–15 cycles per day), the belt should last 5–7 years. Replace it earlier if you notice fraying, glazing, or cracking. - Q: Does belt slippage affect the safety sensors?
A: No, the optical safety sensors operate independently of the belt drive. However, a slipping belt can cause the door to reverse intermittently, which may appear to be a sensor problem. - Q: Can I drive the door manually with a slipped belt?
A: Yes, pull the emergency release cord to disengage the trolley, then manually lift the door. Do not attempt to use the opener until the belt is repaired. The door will be heavy—use caution. - Q: What torque setting should the tensioning bolt be tightened to?
A: There is no specific torque; instead, aim for a 1/4-inch belt deflection at the centre span. Overtightening strains the motor bearings. A common mistake is to use a power drill on the bolt—always use hand tools.
