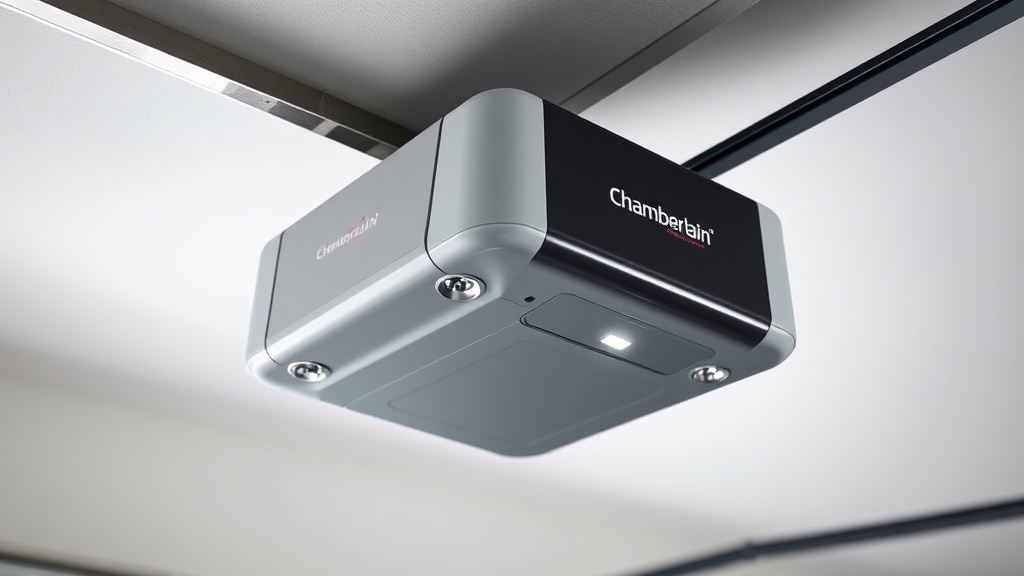

Chamberlain B1381 Error Code Analysis: Common Codes Decoded
When your Chamberlain B1381 garage door opener flashes cryptic error codes, it’s easy to feel stuck. This guide breaks down the most common error blinks and beeps you’ll see from this belt-driven model. With a practical, step-by-step approach, you’ll learn what each code means and how to resolve it without calling a technician every time.
What Does a Blinking Light on the Chamberlain B1381 Mean?
The Chamberlain B1381 communicates through its overhead LED light. A steady blink sequence corresponds to a specific issue. The most common pattern is 1 to 5 flashes followed by a pause. For example, a single flash typically indicates a safety sensor misalignment, while 5 flashes point to a motor failure or a locked rotor. Count the flashes carefully—this is your first clue.
If the light is solid and unresponsive, unplug the unit for 30 seconds, then plug it back in. This resets the logic board and often clears ghost codes. If the blinking persists, move on to the specific code below.
Why Is My Chamberlain B1381 Showing 1 Flash (Error Code 1-1)?

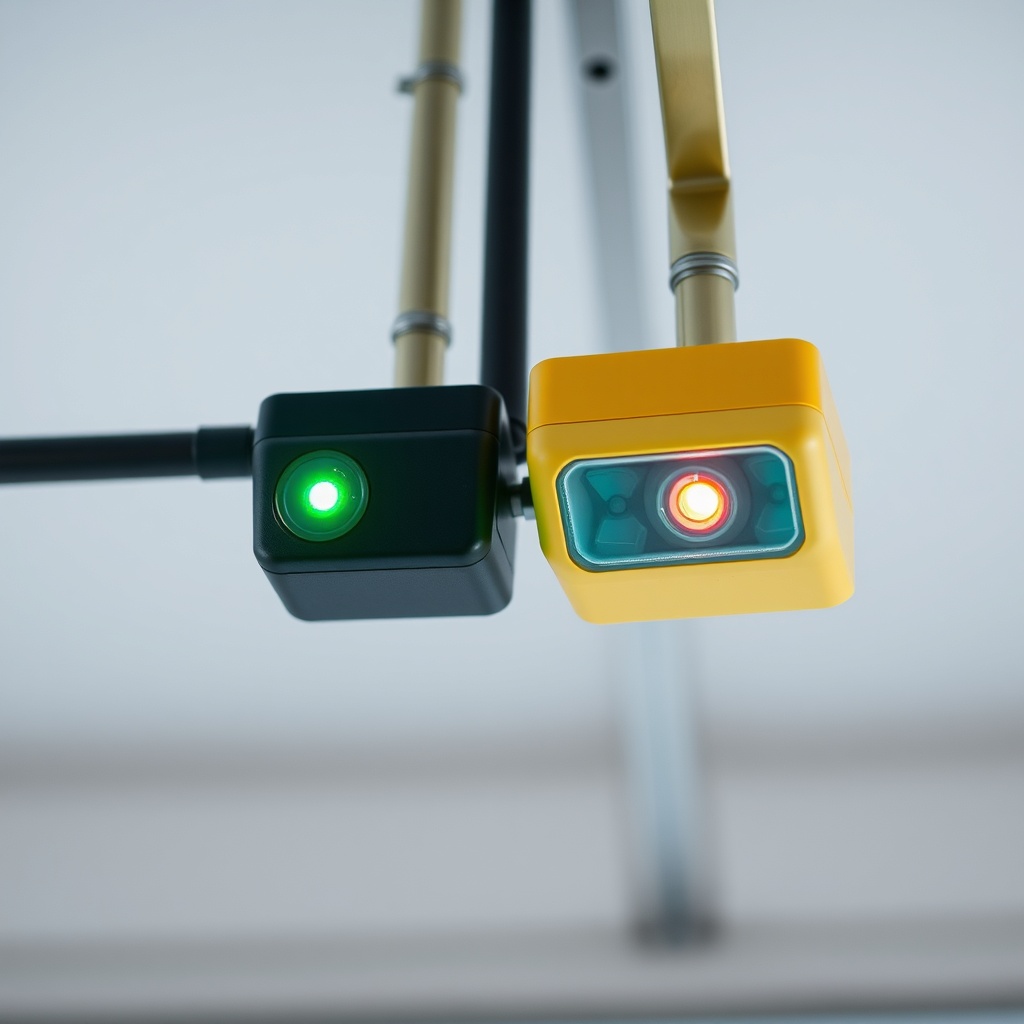

A single flash repeated every 30 seconds signals a safety sensor issue. This is the most common error on the B1381. The sensors near the bottom of the tracks are either misaligned, dirty, or have a broken wire. The opener refuses to close to prevent crushing objects or pets.
Quick fix: Visually check both sensors. They should face each other with a solid LED glow. Clean the lenses with a soft, dry cloth. Realign them using a level—the bracket can loosen over time. If the sensor LED remains off, check the wiring. For a detailed walkthrough, see Chamberlain B1381 Safety Sensor Alignment: Quick Fix Guide.
This error rarely requires a full sensor replacement. Most owners resolve it in under 15 minutes.
What Triggers the 3-Flash Error Code on the B1381?
Three flashes indicate a problem with the door’s travel limit settings or a binding door. The Chamberlain B1381 uses programmable limits to know when to stop. If the door is stuck or the limit switch overshoots, the opener halts and flashes three times.
Diagnosis steps: Disconnect the opener using the emergency release handle. Manually lift the door halfway. If it feels heavy or binds, the springs may need adjustment. Check for broken rollers or a bent track. If the door moves smoothly, adjust the travel limits using the purple “Adjust” button on the motor unit. Turn the up and down limit screws a quarter turn each, then test.
If the door still binds, consult Chamberlain B1381 Spring Repair: Torsion vs Extension for guidance on spring tension adjustments. Never attempt spring repair yourself if you lack experience—torsion springs are under extreme tension.
How to Fix the 5-Flash Error on a Chamberlain B1381?
Five flashes often signal a motor overload or a failed logic board. This code is more serious. It means the opener detected excessive resistance or a short circuit in the motor windings. If the door is heavy, the motor struggles and throws this code.
First, rule out door binding: With the opener disconnected, manually lift the door. It should stay open at waist height without support. If it drops, the springs need rebalancing. Next, check the motor capacitor—a bad capacitor can cause the motor to labor. Finally, test the logic board by unplugging and replugging. If the code reappears immediately, the motor may be burned out.
For a full motor swap, read Chamberlain B1381 Motor Replacement: Step-by-Step Guide. This replacement is doable with basic tools but requires care with wiring.
What Does a Rapid Blinking Light (No Pattern) Mean on the B1381?
A rapid, irregular blink—often 6 or more flashes per cycle—indicates a power supply issue or a failing circuit board. The Chamberlain B1381 needs a stable 120V AC supply. If your home has voltage fluctuations or a tripped breaker, the opener may blink rapidly. A surge protector can help.
Check the power source: Plug a lamp into the same outlet. If it flickers, call an electrician. If the outlet is fine, inspect the wiring harness inside the opener. A loose connection on the logic board can cause erratic blinking. Tighten all terminal screws.
If the blinking doesn’t stop after verifying power, the logic board may have a flawed component. Replacement boards cost around £70–£90 (roughly $110–$130 USD).
Chamberlain B1381 Error Code Severity Table
| Error Code (Flashes) | Indication | Severity Level | Typical Fix Time |
|---|---|---|---|
| 1 flash | Safety sensor misaligned or dirty | Usually not urgent | 10–20 minutes |
| 2 flashes | Door travel limit issue or sensor wire short | Usually not urgent | 15–30 minutes |
| 3 flashes | Door binding or limit switch out of range | Needs attention soon | 20–40 minutes |
| 4 flashes | Motor overheated or stalled | Needs attention soon | 30 minutes (after cooldown) |
| 5 flashes | Motor failure or locked rotor | Urgent, may require part replacement | 1–3 hours |
| Rapid blink (no pattern) | Power supply or logic board failure | Urgent, may require electrician | Variable |
What Owners Say About Chamberlain B1381 Error Codes
Real-world feedback from B1381 owners highlights a few patterns. One common sentiment: “The 1-flash code happened two months after install—cleaning the sensors fixed it in five minutes. Wish I’d known that before I called a repairman.” Another owner noted, “My 5-flash code scared me, but after lubricating the tracks and adjusting the spring tension, it never came back.”
Others mention the belt itself: “Compared to my old chain drive, the B1381 is quiet, but when I got the 3-flash error, I learned the door needed balancing. Once I did that, it ran perfectly.” A few seasoned DIYers appreciate that error codes are consistent with other Chamberlain models, making troubleshooting transferable.
Frequently Asked Questions
Why does my Chamberlain B1381 blink 1 time and stop?
It indicates a safety sensor problem. Check alignment and cleanliness of both sensors. The opener won’t close until they see each other.
Can I reset the Chamberlain B1381 error code without a repair?
Yes. Unplug the opener for at least 30 seconds to clear temporary logic faults. Many codes, especially 1-flash and 2-flash, resolve after a clean power cycle.
What do 4 flashes mean on a Chamberlain B1381?
Four flashes signal motor overheating or a stalled condition. Let the motor cool for 15–30 minutes, then try again. If it persists, check for door binding.
Do I need to replace the logic board if I get rapid blinking?
Not always. First verify power stability and check all wiring connections. If the blink continues after securing connections, a logic board replacement may be needed—costing around £70–£90.
How do I know if the Chamberlain B1381 motor is burned out?
If you see 5 flashes, hear humming but no movement, and the door is not binding, the motor stator may have failed. A new motor assembly is around £120–£160.
Is the Chamberlain B1381 compatible with a different brand of sensors?
No, it must use Chamberlain or LiftMaster sensors (the same company). Using third-party sensors may cause constant error codes or safety failures.
