LiftMaster 8550WLB Opener Drive Troubleshooting: Chain vs Belt Issues
The LiftMaster 8550WLB is a premium garage door opener that ships with a reliable belt drive system, but owners sometimes confuse its operation with chain drive models or encounter specific belt drive issues. Understanding the nuances between chain and belt drive dynamics is essential for accurate troubleshooting, preventing premature wear, and ensuring smooth daily operation. This guide addresses the most common drive system problems specific to the 8550WLB, distinguishing between belt-related quirks and issues that might mimic chain drive failures.
Why Does My LiftMaster 8550WLB Make a Grinding Noise During Operation?

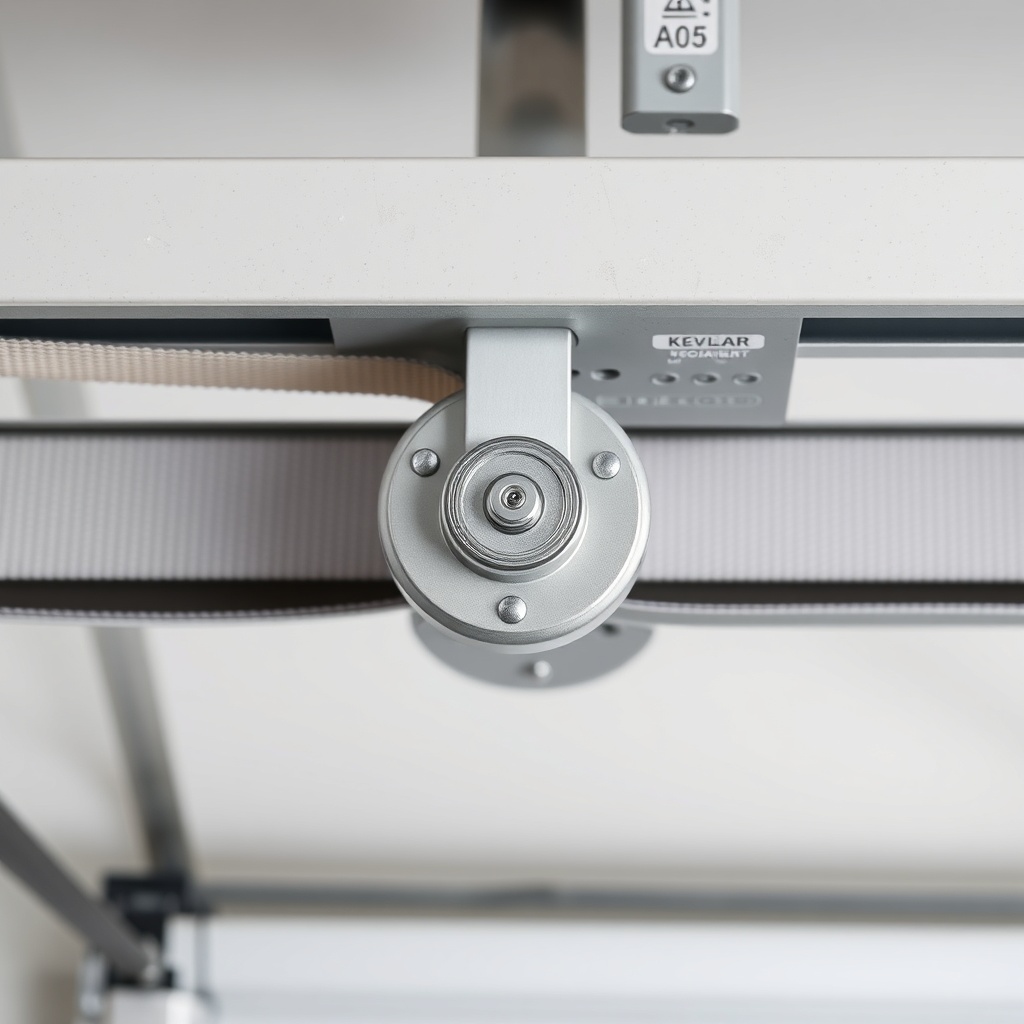

A grinding noise from your 8550WLB is almost always a sign of belt drive wear or misalignment rather than a chain issue, since this unit uses a Kevlar-reinforced belt. The first step is to inspect the belt tension; if it’s too loose, the belt can slap against the rail or the sprocket, creating a rhythmic grinding sound. Turn off the opener and manually move the trolley—if you feel excessive slack or hear a scraping sound, the belt likely needs adjustment.
Another common cause is debris caught in the belt track. Check the rail for small objects like screws or pebbles that may have fallen from the ceiling. If the noise persists after cleaning and tension adjustment, examine the belt’s teeth for uneven wear. Unlike chain drives, a worn belt will often have frayed edges or missing teeth, requiring replacement. For detailed steps on belt replacement, refer to our LiftMaster 8550WLB Cable Replacement: When and How guide, which covers similar tensioning principles.
How Does Belt Drive vs Chain Drive Affect the 8550WLB’s Performance?
The 8550WLB is designed as a belt drive system, which inherently offers quieter operation and less vibration compared to chain drives. However, this design difference also means that certain issues manifest differently. With a chain drive, you might notice rattling from chain slap or rust, whereas belt drives are prone to slippage if tension is wrong or if the belt becomes glazed from heat.
For the 8550WLB, a common performance issue is a “surging” motion during opening or closing, where the door moves unevenly. This is rarely a motor problem—it’s often due to belt stretch after years of use. Measure belt deflection: press down on the belt midway; it should deflect about 1/4 to 3/8 inch. If deflection is greater, tighten the tension using the adjustment bolt on the trolley. If less, the belt may be too tight, causing strain on the motor. Chain drive openers typically don’t have this precise deflection requirement, so owners switching from chain units may need to adjust their expectations. For broader troubleshooting, see our LiftMaster 8550WLB Troubleshooting Guide: Fix 10 Common Issues.
| Issue | Severity | Typical Cause | Action |
|---|---|---|---|
| Grinding noise during operation | Needs attention soon | Belt slack or debris | Clean rail and adjust belt tension |
| Surging or uneven door movement | Usually not urgent | Belt stretch (0.5–1 year of use) | Tighten belt to 1/4–3/8 inch deflection |
| Squeaking sound from motor head | Needs attention soon | Dry bearing or belt rubbing | Lubricate drive sprocket with white lithium grease |
| Opener runs but door doesn’t move | Urgent – stop use | Broken belt or stripped sprocket | Replace belt or sprocket immediately |
| Intermittent clicking when reversing | Usually not urgent | Belt stiffness in cold weather | Adjust downforce setting (max 140 lbs) |
What Should I Check If the Door Reverses Immediately After Pressing the Wall Button?
If your 8550WLB starts to close but immediately reverses, it’s often mistaken for a safety sensor issue, but drive system problems can also cause this. A belt that’s too tight can bind the trolley, triggering the force sensor falsely. First, perform a manual force test: disconnect the opener and lift the door manually—if it feels heavy or sticky, your springs may need adjustment. If the door moves freely, recheck belt tension. On the 8550WLB, the belt tension bolt is located on the trolley near the front of the rail. Loosen the lock nut and turn the tension bolt clockwise to increase slack if needed. Over-tensioning is a common mistake among DIYers who treat it like a chain drive.
Another culprit is the travel limit settings. If the opener thinks the door is already closed, it will reverse. Reset the limits per the manual: press the “Learn” button and follow the programming sequence. For safety confirmation, always run our LiftMaster 8550WLB Auto-Reverse Test: Ensuring Safety after any adjustments to verify proper force sensitivity.
Can I Convert My LiftMaster 8550WLB from Belt to Chain Drive?
Technically, you cannot directly convert the 8550WLB to a chain drive because the motor head, rail, and trolley are all designed specifically for belt operation. The 8550WLB uses a T-rail system that accepts only a matching belt drive rail assembly. Attempting to retrofit a chain rail can damage the sprocket and void the warranty. If you prefer chain drive for durability reasons (e.g., extreme weather or heavy door use), consider replacing the entire unit with a chain-drive model like the LiftMaster 8160W.
However, many owners find the belt drive on the 8550WLB more than adequate for standard 7-foot doors. The belt’s Kevlar reinforcement resists stretching and breaking better than older rubber belts. For extreme applications (10×10 commercial doors), you might need a different model. Keep in mind that chain drives require more frequent lubrication and are noisier, which defeats the 8550WLB’s quiet operation purpose. If your belt has failed, replacement kits cost around £45–£70 (€50–€80) from authorised dealers. Check installation costs in our LiftMaster 8550WLB Installation Cost and DIY vs Pro Guide.
What Causes Intermittent Operation of the 8550WLB When Using Remote Controls?
Intermittent remote operation often points to radio frequency interference, but drive system issues can mimic this. If the opener runs only sometimes, test the wall button first. If the wall button works consistently, the problem is likely not drive-related. However, a failing battery in the remote or logic board capacitor can cause sporadic operation. On the 8550WLB, the drive’s logic board is sensitive to voltage dips; a worn belt that causes the motor to work harder can draw more current, leading to occasional resets. Check the belt’s condition—if it’s glazed or has visible cracks, it increases motor load.

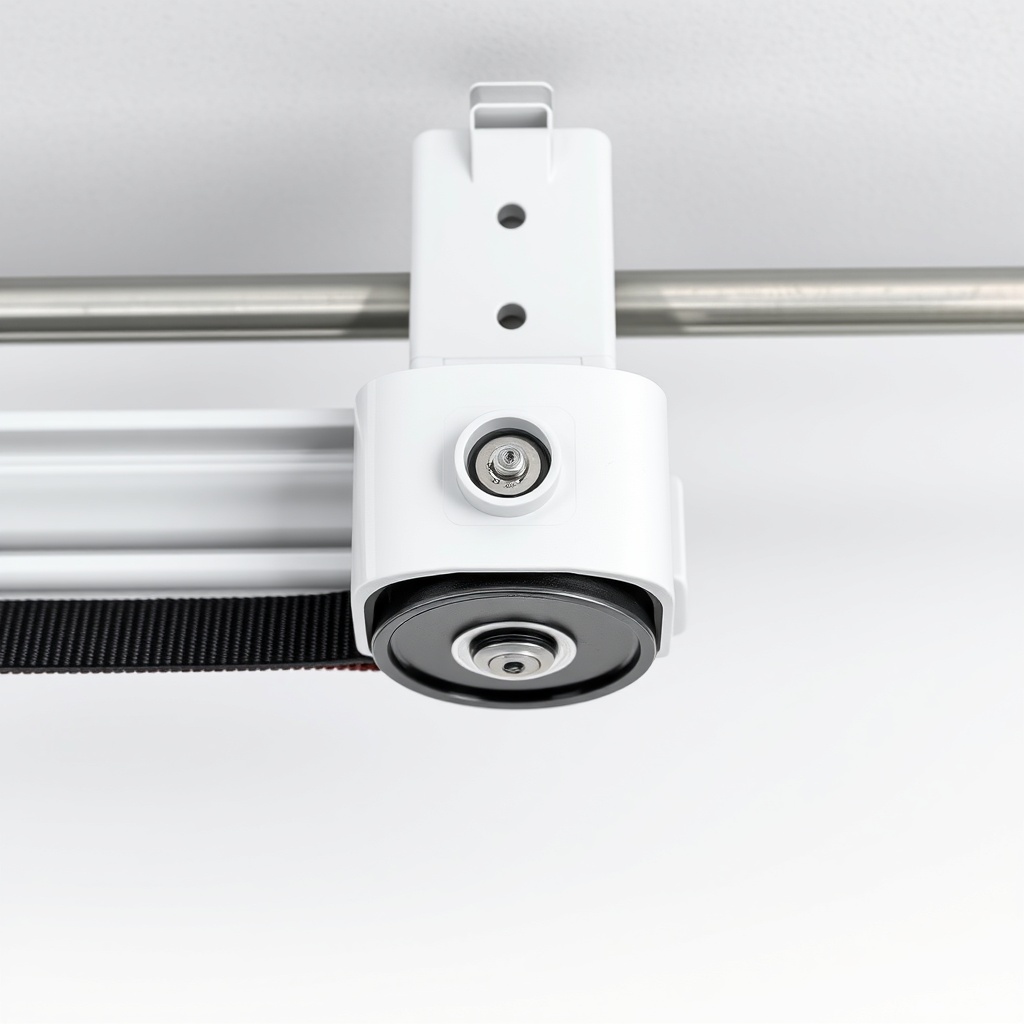

Another drive-specific cause is a loose trolley connection. Over time, the pin that attaches the trolley to the belt can wear, causing a disconnect that appears as if the opener isn’t responding. You can inspect this by opening the rail cover and looking for a loose pin or broken plastic retainer. Tightening or replacing the pin often resolves the issue. For other intermittent problems, review common fixes in our LiftMaster 8550WLB Troubleshooting Guide: Fix 10 Common Issues.
What Owners Say
Real-world feedback from GarageGuru readers and online forums highlights a few recurring themes with the 8550WLB’s drive system. Many owners praise the belt’s quiet operation but note that tension adjustments are more frequent than they expected. “I had a chain-drive opener for 15 years and never touched the tension. With the 8550WLB, I check it every spring and fall,” one user reported. Another common observation is that the belt can become noisy in cold weather (below -5°C/23°F), requiring a slight tension reduction to prevent creaking. A third owner shared that after five years, the belt developed a small fray near the motor sprocket, which was resolved by a replacement kit costing around £50 (€58). Overall, owners recommend regular cleaning of the rail and annual belt inspection to avoid surprises.
Frequently Asked Questions
- How often should I lubricate the belt on my LiftMaster 8550WLB?
Unlike chains, the 8550WLB belt should not be lubricated. The belt is self-lubricating Kevlar. Applying grease can attract dirt and cause premature wear. Only lubricate the rail’s moving parts (trolley bearings) with a silicone spray annually. - Can I use a chain drive rail from another opener on the 8550WLB motor head?
No. The 8550WLB’s motor head sprocket is designed for belt teeth spacing. Using a chain rail will damage the sprocket and may cause the belt to slip or break. Always use the belt rail that came with the opener. - What is the correct belt tension for the 8550WLB?
Measure deflection at the midpoint of the belt’s lower run. It should move up about 1/4 to 3/8 inch (6–10 mm) when you press firmly with your thumb. If it moves more, tighten the bolt; if less, loosen slightly. - Why does my 8550WLB make a loud bang when reversing?
This is often caused by a loose belt slapping the rail when the opener reverses quickly. Adjust the belt tension to the proper deflection. If the bang persists, check if the belt is hitting the stop bolt on the rail; adjust the open limit slightly. - Can I replace the belt myself without special tools?
Yes, but it’s moderate difficulty. You’ll need a 9/16-inch wrench and a flathead screwdriver. Disconnect the opener, remove the trolley pin, slide the belt off the sprocket, and install the new belt. The process takes 30–60 minutes. For detailed steps, see our cable replacement guide referenced earlier. - How much does a replacement belt cost for the 8550WLB?
OEM LiftMaster 8550WLB belt kits (model 041C0018) cost between £40 (€46) and £65 (€75) from UK distributors. Aftermarket belts are around £25 (€29) but may not have Kevlar reinforcement and often fail earlier.
